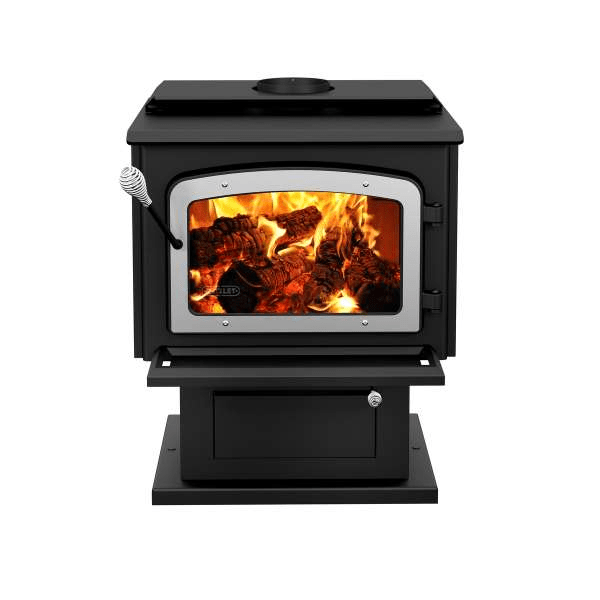

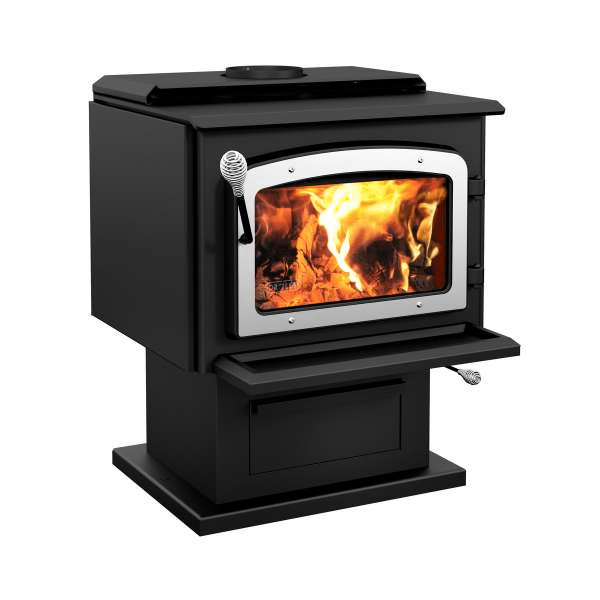

Get Cozy on Cold Winter Nights With the State of the Art Escape 1800 Wood Stove
The Drolet Escape 1800 Wood Stove is the perfect way to keep your home cozy and warm on cold winter nights. This large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 1.54 g/h of fine particles, making it a great choice for spaces up to 2,100 ft². The side panels reduce clearances to combustible materials, and the top heat exchanger redirects heat to the front of the unit. Get cozy on cold winter nights with this state-of-the-art wood stove!
Included: pedestal with ash drawer, brushed nickel door overlay, top air deflector, ceramic glass, side panels, ash lip, air damper
Options: blower, thermodisc, firescreen, fresh air intake kit
When you purchase a Drolet Escape 1800, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
Drolet Escape 1800 High Efficiency Wood Stove Features:
- Up to 8 hours burn time
- Up to 20” logs
- 2.4 ft³ firebox
- Heavy-duty 5/16” steel top
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency: 77 %
- Average particulate emissions rate: 1.54 g/h
- Steel thickness – top: 5/16″
- High-efficiency certified appliance: Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 500 – 2,100
- Easy-to-access ash drawer
Drolet Escape 1800 Wood Stove Brushed Nickel Door Specifications:
| Fuel type | Dry cordwood (16″ recommended) |
| Recommended heating area-ft² () | 500 – 2,100 |
| Overall firebox volume-ft³ | 2.4 |
| EPA loading volume-ft³ | 2.02 |
| Maximum burn time () | 8 h |
| Maximum heat output-dry cordwood (3) | 75,000 BTU/h (22 kW) |
| Overall heat output rate < (3) (4) | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW) |
| Average overall efficiency (dry cordwood) (4) | 69 % (HHV) (5) 74 % (LHV) (6) |
| Optimum overall efficiency (7) (8) | 77% |
| Optimum heat transfer efficiency (9) | 75% |
| Average particulate emissions rate (1) | 1.54 g/h |
| Average CO (10) | 89.4 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20″ |
| Log positioning | Loading over width |
| Chimney diameter | 6″ |
| Flue outlet diameter | 6″ |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12′ |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 382 lb (173 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 16″ X 9 1/4″ |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 32 5/8″ |
| Overall dimension (Width) | 25 5/8″ |
| Overall dimension (Depth) | 25 3/4″ |
| Door opening – dimension (Height) | 9″ |
| Door opening – dimension (Width) | 17 1/2″ |
| Firebox – dimension (Height) | 12″ |
| Firebox – dimension (Width) | 21″ |
| Firebox – dimension (Depth) | 16 1/2″ |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 3/16″ |
| Steel thickness – top | 5/16″ |
| Easy-to-access ash drawer | Yes |
| USA standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
[split]
Drolet Escape 1800 Wood Stove Brushed Nickel Clearance Requirements:
| United States | Single wall pipe | Double-wall pipe |
| Clearance – back wall | 11″ | 6″ |
| Clearance – corner | 10″ | 7″ |
| Clearance – side wall | 16″ | 16″ |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84″ | 84″ |
Drolet Escape 1800 Wood Stove Installation and Operation Manual:
Click Here for Installation Manual
Drolet Escape 1800 Wood Stove DB03111 Safety Notifications And General Information:
Click Here for Safety Notifications And General Information
